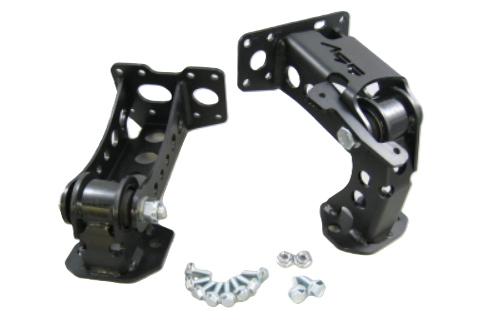

Engine mounts BMW M50, M52, M54 in BMW E36, E46, 20 degree offset

For those who want to drive with BMW M50, M52, M52TU or M54 in BMW E36, E46 Inclination: 20 degrees These brackets completely replace the original brackets. Developed for LHD. The engine is placed at the same depth and height, measured from the front beam up to the center of the crankshaft, as the original but gets a 20 degree inclination instead of the 30 degrees that is original. This is the same inclination that the M20 and the diesels have. Adapted with different hole patterns to the engine mount to fit both E36 and E46. The bracket on the exhaust side is designed low and is located close to the front beam to create as much space as possible upwards for the manifold/turbo. Includes bracket for the servo oil reservoir. Things to consider when changing the engine inclination. We recommend that you adapt the oil pan and pickup to the oil pump for the changed inclination of 10°, however, many have tested driving with the original unchanged oil pan without problems. Among other things, the original intake will take on the brake servo. The gearbox will also tilt 10°. Either you change to an equivalent gearbox from a diesel or you have to rebuild the gearbox bracket and rack/arm for the gear lever. A set of brackets consists of: brackets including bushings and all screws/nuts needed for mounting in the beam and engine
