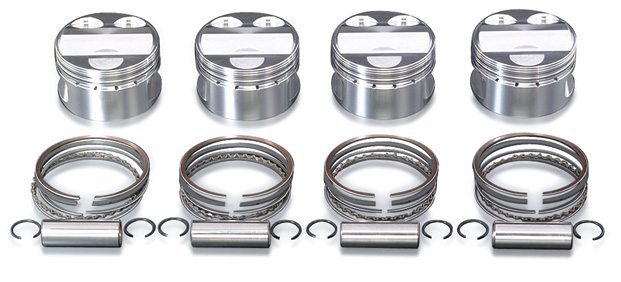

Description 4AG (5 valve) High Comp Forged Piston KIT for AE111 Engine type 4AG 5 Valve (for AE111) Part No. 13010-111-000 13020-111-000 13040-111-000 Bore ø81.00mm ø81.25mm ø82.00mm Displacement 1587cc 1597cc 1627cc Crown Volume *1 8.4cc/7.4cc 8.4cc/7.4cc 8.4cc/7.3cc Projection Height *2 -0.2mm -0.2mm -0.2mm Reference C/R *3 Standard head GKξ≈11.6:1 TODA head GK t=0.8mmξ≈12.2:1 Standard head GKξ≈11.7:1 TODA head GK t=0.8mmξ≈12.3:1 Standard head GKξ≈11.8:1 TODA head GK t=0.8mmξ≈12.5:1 *1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”. *2:Piston shoulder height is measured from the deck of the block. *3:The compression ratios given above are only to be taken as a guide, measurements are required. **If not in stock allow 1.5 weeks lead time**
