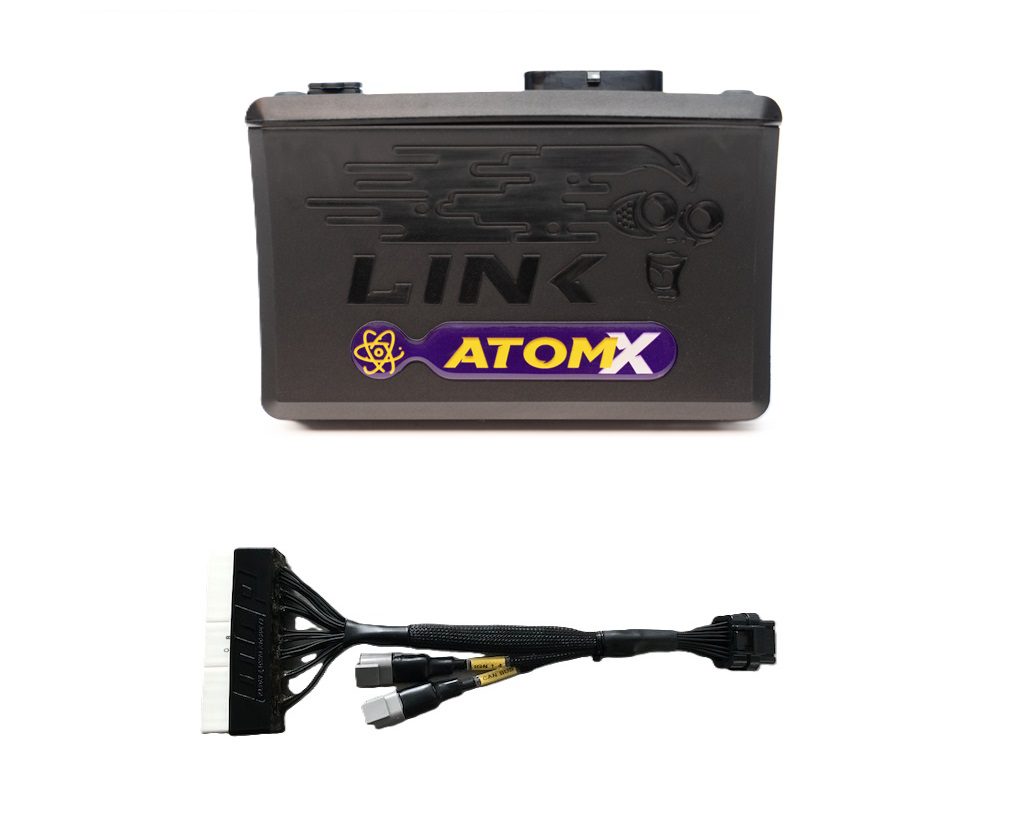

Description MRP 4age 20v Link AtomX G4 Patch Harness Kit This allows you to plug the ECU directly into your cars stock loom with a few additional wires to wire in. – 1x Atom X G4X ECU – 1x Custom MRP Patch Harness – Plugs directly into 20v Blacktop AE111 stock harness – Optional Coil on Plug Wiring Loom 1.5m to suit either 1NZ or R35 Coils – 16v setups require a full engine harness with bosch sensors (COP harness is included) Link G4X AtomX ECU The Link G4X AtomX ECU is the latest version of our entry-level ECU. Don’t let its size fool you however, the AtomX has 512 megabytes data logging and uses the same microcontroller as the entire G4X range! It is more responsive and has higher bandwidth that its G4 Atom II predecessor. G4X features 8 x faster communications speed, allowing you to download logs 8 x faster and pushes all the logging quickly up to a new and improved PCLink – available for download below in the features tab. G4X has 512MB of logging at 32bit using up to 250 channels, each limited to up to 1kHz per channel (by the Operating System), with a maximum of 100kHz. The AtomX can control up to 2 rotors or 4 cylinders with sequential injection and direct spark. This makes it ideal for naturally aspirated engines that just need a re-tune and don’t need all the extra sensors and features that come with our higher level ECUs. The AtomX is ideal for: 1-12 Cylinder Distributed 2-8 Cylinder Wasted Spark 1-4 Cylinder Direct Spark Odd Fire Engines 2-Stroke Engines Configurable Firing Order Configurable TDC Points (for odd fire) *Requires “A” loom. Inputs 2 x Digital inputs 2 x Temperature inputs 3 x Analog inputs 2 x Trigger inputs Outputs 4 x Injection drives 4 x Ignition drivers 4 x Auxiliary outputs* * unused ignition drives can also be used as auxiliary outputs Communications 1x CAN bus 1 x thirty four pin, waterproof connectors 1x USB tuning connection Upgraded communications chip 5V Sensor power supply Misc. Comes loaded with all of Link ECU’s standard features Onboard barometric pressure sensor 512MB of logging memory 20 general purpose tables Runs on PC Link software for G4X
